Key
Features
1, industrial-grade motherboard design, RK3566 ARM Quad-Core Cortex-A55, 1.8Ghz.
2, Android 14 operating system, 3GB DDR + 16GB EMMC.
3, An omni-payment solution including contactless, prepaid, NFC, mobile, and bar code payments.
4, Extensive communications: GSM / 3G / 4G, WiFi, Bluetooth, SIM, PSAM.

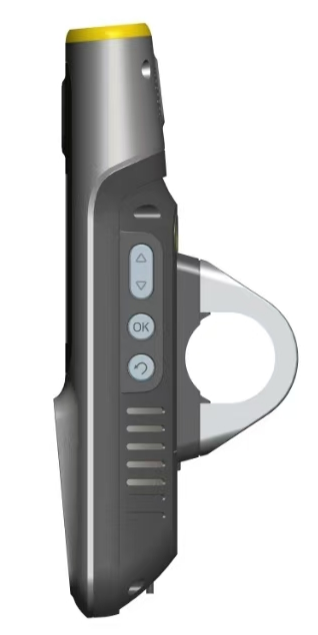

5, Come with back mount for support onthe pole, rigid design ensuring stable operations under harsh conditions.
Specifications

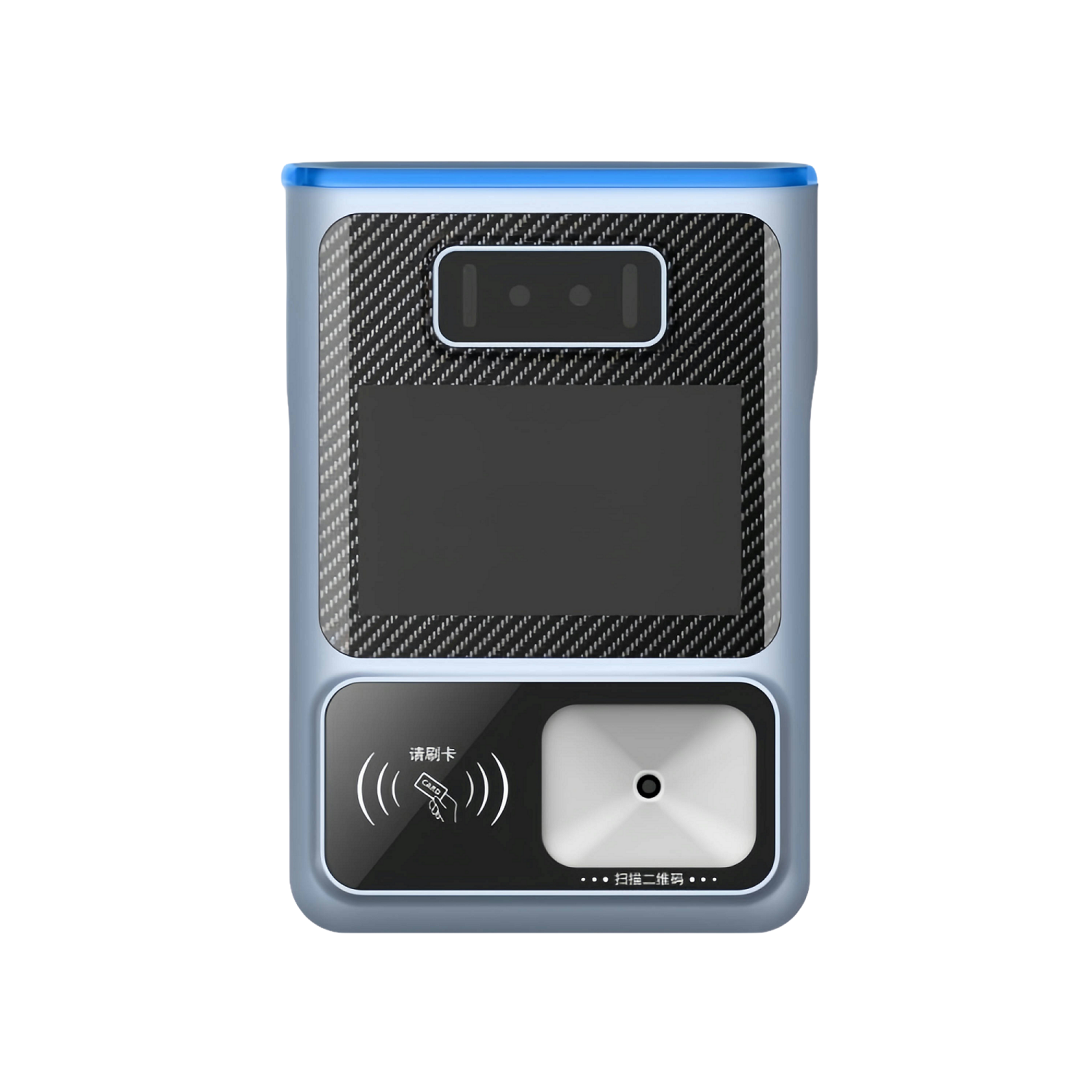

H111 Android 14 OS 5 inch Smart Bus Validator
|
Operation System
| Android 14
|
Processor
| RK3566 ARM Quad-Core Cortex-A55, 1.8Ghz
|
RAM+ROM
| 3GB LPDDR4+ 16GB EMMC |
Display
|
5 inch IPS 800*400 16:9 |
Driver Dispaly
| 8 bits LED Digital Display |
NFC Card Reader Quick Pay Module
|
Mifare Standard ISO14443A/B, ISO10536 or ISO7816 standard Optional EMV NFC Module (Optional) |
Barcode Scanner Module | 2MP Sensor with Global Shutter and LED Flash Assist, Fixed focus, Hardware decoding, High-light resistance |
Face AI Camera (Optional) | Dual-lens RGB+IR depth camera (2MP+) with liveness detection |
Communication and Frequency |
4G FDD: B1/B3/B8 | TDD:B38/B39/B40/B41 3G WCDMA: B1/B8 | TD-SCDMA: B34/B39 | EVDO/CDMA: BC0 2G GSM: 900/1800MHz |
WiFi 6 | 802.11b/g/n/ac 2402-2482MHz/5180-5825MHZ |
Bluetooth 4.1/4.2/5.0 | BT4.1/4.2 /5.0 LE 2402-2480MHz |
GPS Module | GNSS: GPS/GLONASS/BEIDOU GPS: 1575.42MHZ ±1.023MHZ GLONASS: 1597.5-1605.8MHZ BEIDOU: 1561.098-2.046MHZ |
External Interface
| 1* USB interface OTG; 1* Serial port (RS232 by default,can do RS485), Φ12MM Aviation Head 1* GPS antenna Socket ((RP-SMA)) 1* DC Socket(DC IN), Φ12MM Aviation Head 1* SIM Card Slot 3* PSAM Card Slot |
Battery (Optional) | 3.7V 2600mAh Polymer Battery, Barcode Scanning Time >12h |
Audio Amplifier | Efficient DSP Processing, SD Sound 3W Mono Output |
Physical Button | Confirmation key, Up Flip key, Down Flip key, Clear key |
Adapter | Input 10-40V 2.5A |
