The intelligent POS payment terminal T6U is Android 13 system with high-performance processor-Cortex A53 Quad-core 2.0 GHz, 6.5 inch full-touch 1600 × 720 HD large screen .
NFC Contactless & Chip card readers supports various payment methods, certified by PCI, EMV, MasterCard, Visa, UPI, JCB, PURE, American Express, Discover etc.
Key Features
1.Customized system, stable and easy to operate
Android 13 operation system, provide secondary development kit, easy to operate and develop.
2.High speed Quad-core CPU, no crash, work smoothly
64bit Cortex-A532.0GHz, with large storage capacity, quick response speed, ensure efficiency working for long time.
3.Multi card payment gateways
With NFC Contactless & Chip IC card reader support payment from all kinds of cards.
4.Multi bands 4G communication
Support different 4G bands from different countries, compatible with 3G and 2G.
5.OEM&ODM available
Products can be customized depends on clients' requirement and quantity.
Specifications
| T6U EMV PCI Certified 6.5 inch Android 13 Payment Pos Terminal | |
| CPU | AP: 64bit Cortex-A53 2.0GHz SP: RISC Core （ARMv7 - M） |
| Operation System | Android 13 |
| RAM+ROM | 2GB RAM + 32GB ROM by default 3GB + 32GB / 4GB + 64GB Optional |
| Display | 6.5'' HD 1600*720 IPS Capacitive Multi-Touch Screen |
| Camera | 5MP AF Front-Facing Camera (16MP AF Optional) |
| IC Card Reader | Compliance with EMV, PBOC, ISO7816 |
| NFC Card Reader | Type A/B,Mifare, Compliance with EMV, QPBOC, ISO14443 |
| Communications | WiFi: 2.4GHz/5GHz 802.11 a/b/g/n Bluetooth 5.1(BLE) 4G: TDD-LTE B38/40/41,FDD-LTE B1/2/3/5/7/8/20/28 | B4 Latam Version Optional 3G: WCDMA B1/2/5/8 2G: GSM 850/900/1800/1900) |
| Ethernet | 10/100MB |
| GPS | GPS / GLONASS / BEIDOU |
| TF Slot | 1*TF Card Slot |
| SIM/SAM Slot | 2*SIM + 1*PSAM or 1*SIM + 2*PSAM |

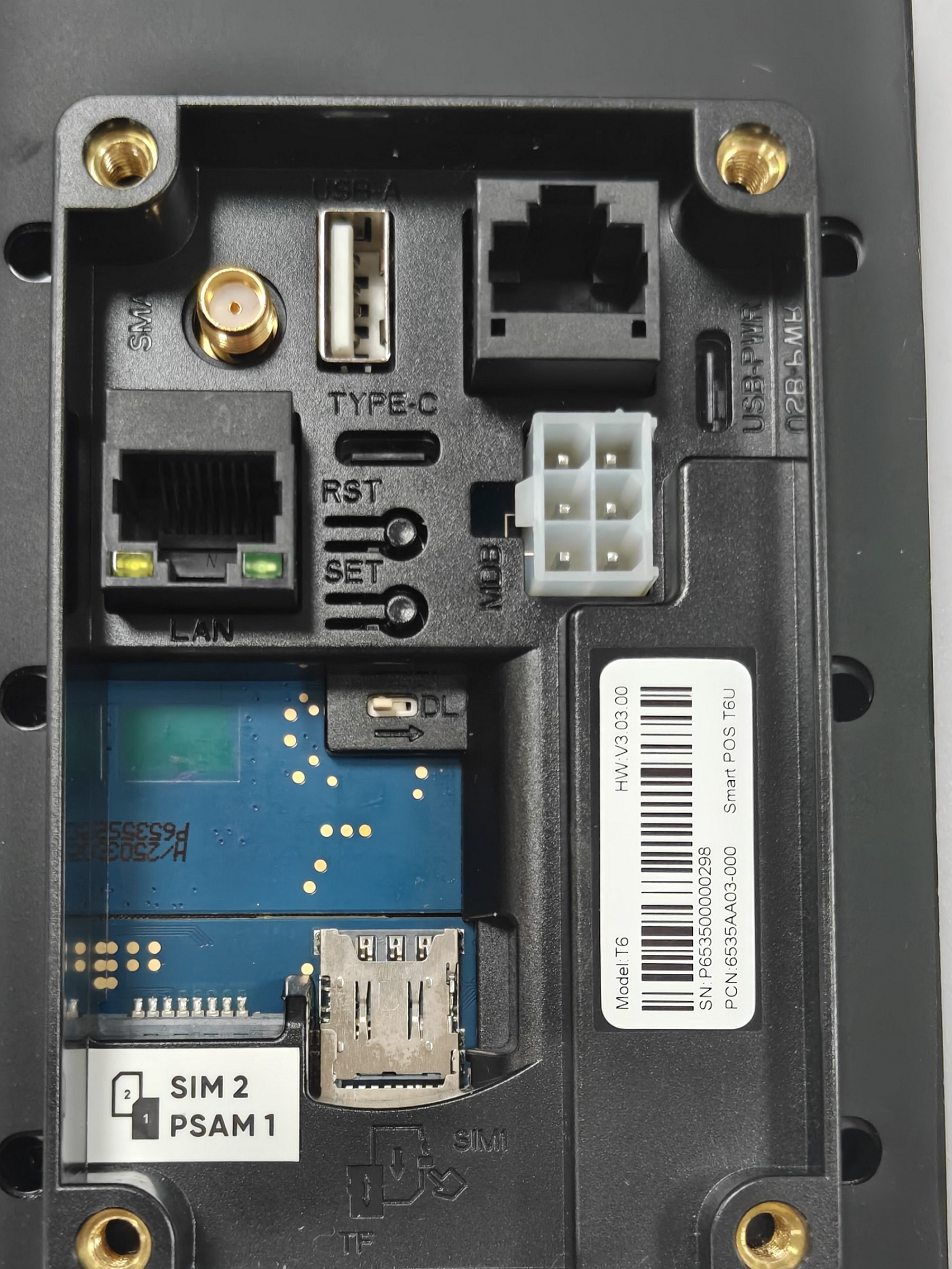

| USB Port | 1 * TypeC1 USB 2.0 for Communication 1 * USB A Host 1 * Ethernet in RJ45(100MB) 1 * RS232 in RJ45 1 * MDB Slave 1 * SMA for 4G 1 * TypeC2 for Power(support ADB/dowmload after slide the USB switch) 1 * Switch for TypeC2 control |
| Audio | 1 * Speaker |
| Sensor | Light Sensor + Range sensor |
| Adapter | TypeC Adapter: 5V/3A | Power Supply: 5V from type C | 12-48V from RS232/MDB |

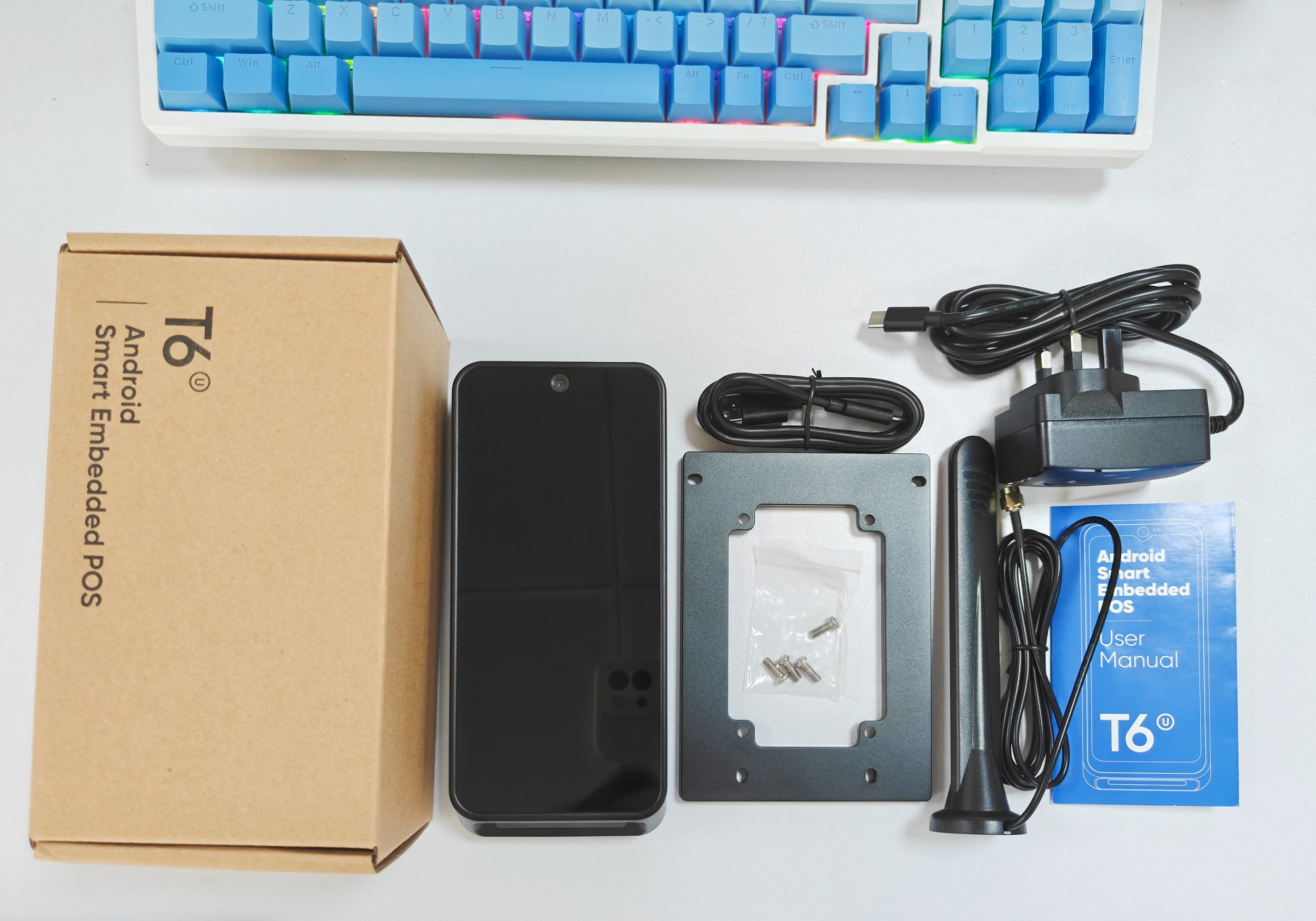

| Accessory | Mounting Plate | 4G Antenna | Type-C Cable | MDB Cable | RS232 Cable (Optional ) |
| Certiications | PCI 6 | EMV Contact L1 | EMV Contact L2 | EMV Contactless L1 | Visa PayWave Mastercard PayPass | Mastercard TQM | American Express | PURE UPI | JCB | Discover D-PAS | NSICC | CE | RoHs |
