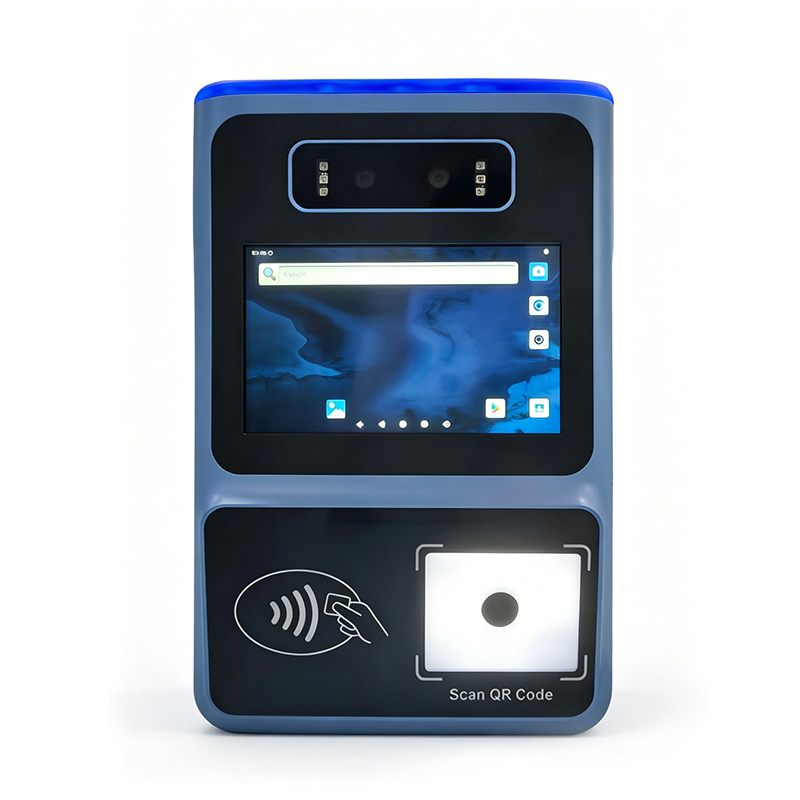

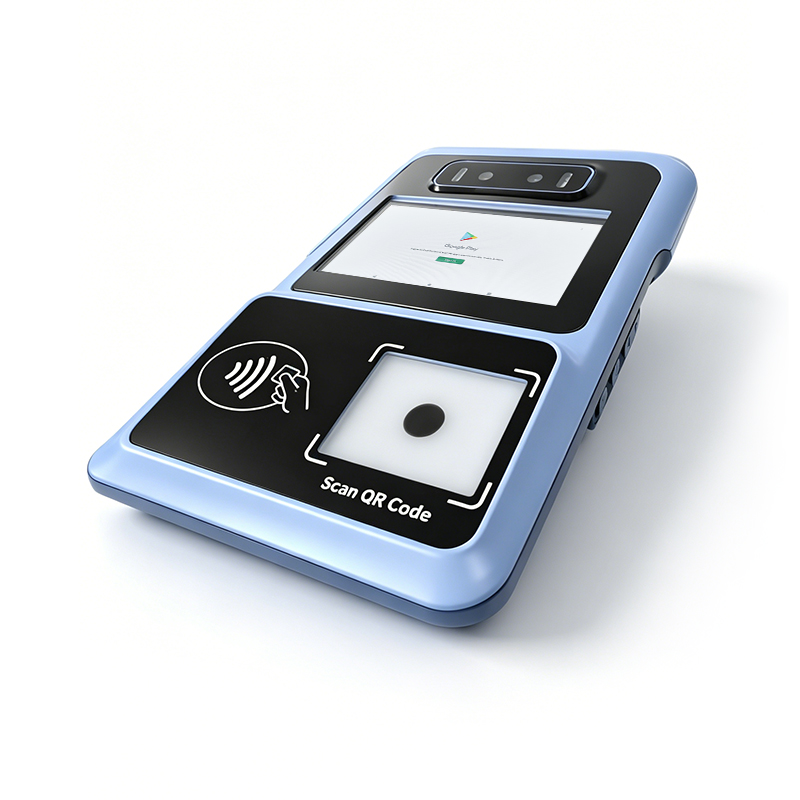

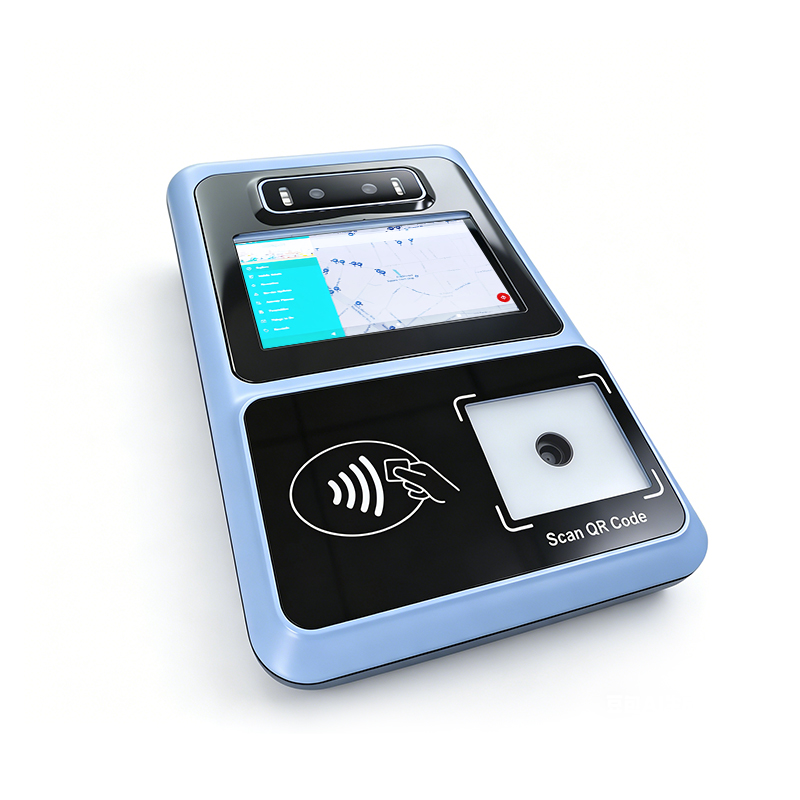

H111 Bus Validator is a reliable Android verification terminal independently developed and produced by HRET. It boasts stable performance, easy operation, sturdy body structure, good waterproof and shockproof capability, as well as built-in high-sensitive GPS with strong signal reception.
It is widely used for bus ticketing, scenic spot ticket verification, staff attendance checking, access control systems and more scenarios.
Key
Features
1, industrial-grade motherboard design, RK3566 ARM Quad-Core Cortex-A55, 1.8Ghz.
2, Android 14 operating system, 3GB DDR + 16GB EMMC.
3, An omni-payment solution including contactless, prepaid, NFC, mobile, and barcode payments.
4, Extensive communications: GSM / 3G / 4G, WiFi, Bluetooth, SIM, PSAM.

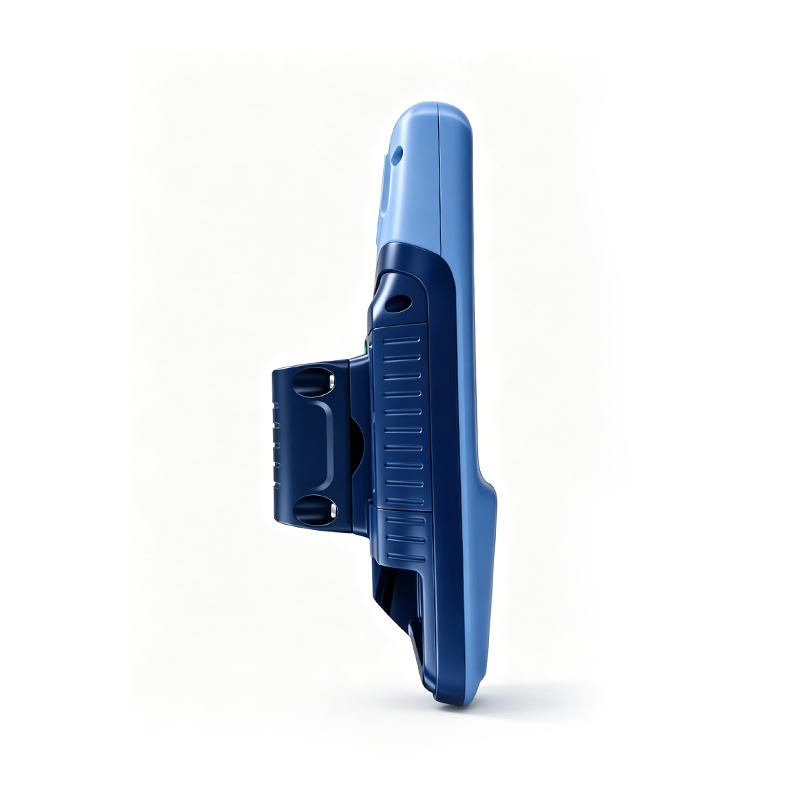

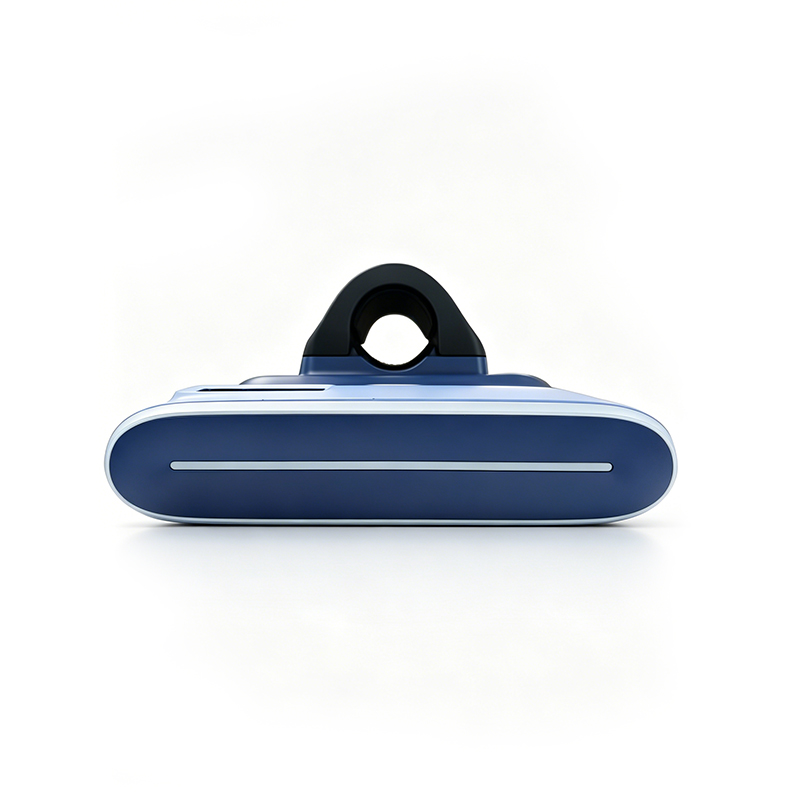

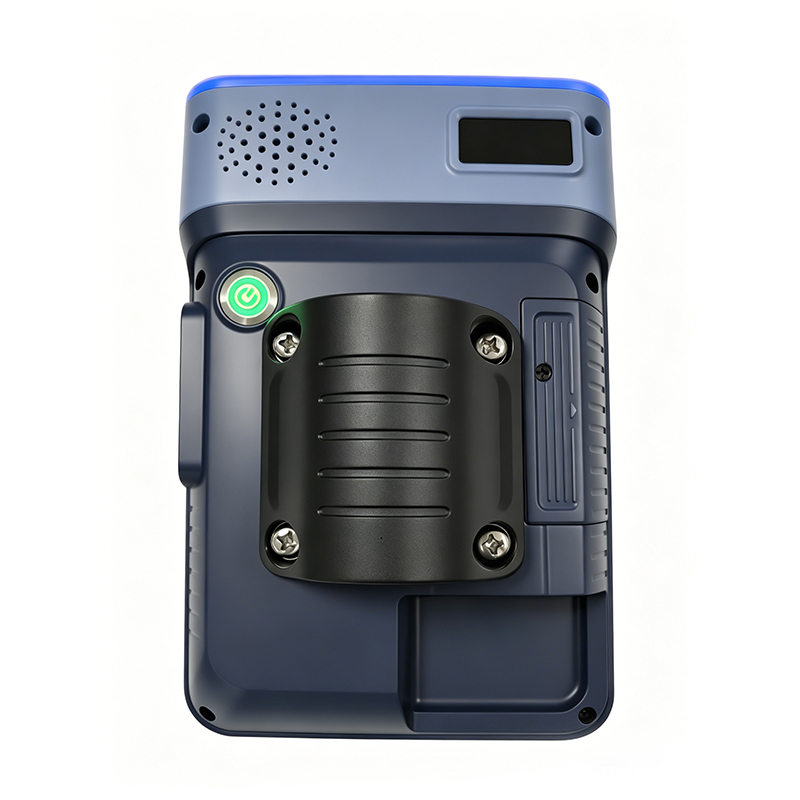

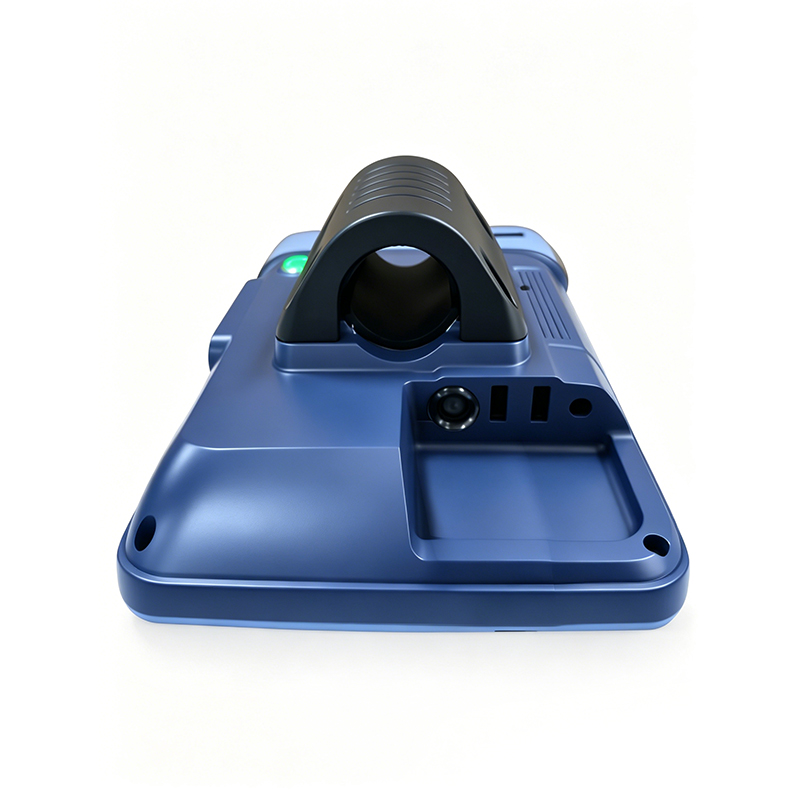

5, Come with back mount for support onthe pole, rigid design ensuring stable operations under harsh conditions.
Specifications
| H111 Android 14 OS 5 inch Smart Bus Validator | |
Operation System | Android 14 |
Processor | RK3566 ARM Quad-Core Cortex-A55, 1.8Ghz |
| RAM+ROM | 3GB LPDDR4+ 16GB EMMC |
Display | 5 inch IPS 800*400 16:9 |
Driver Dispaly | 8 bits LED Digital Display |
NFC Card Reader EMV NFC(Optional) | Mifare Standard ISO14443A/B, ISO10536 and ISO7816 Read and Write(Default) EMV L1&L2,PCI 5.x Quick Pay Module (Optional) |
Barcode Scanner | 2MP Sensor with Global Shutter and LED Flash Assist, Fixed focus, Hardware decoding, High-light resistance |
Face AI Camera (Optional) | Dual-lens RGB+IR depth camera (2MP+) with liveness detection |
Communication and Frequency | 4G FDD: B1/B3/B8 | TDD:B38/B39/B40/B41 3G WCDMA: B1/B8 | TD-SCDMA: B34/B39 | EVDO/CDMA: BC0 2G GSM: 900/1800MHz |
WiFi 6 | 802.11b/g/n/ac 2402-2482MHz/5180-5825MHZ |
Bluetooth | BT4.1/4.2 /5.0 LE 2402-2480MHz |
GPS Module | GNSS: GPS/GLONASS/BEIDOU GPS: 1575.42MHZ ±1.023MHZ GLONASS: 1597.5-1605.8MHZ BEIDOU: 1561.098-2.046MHZ |

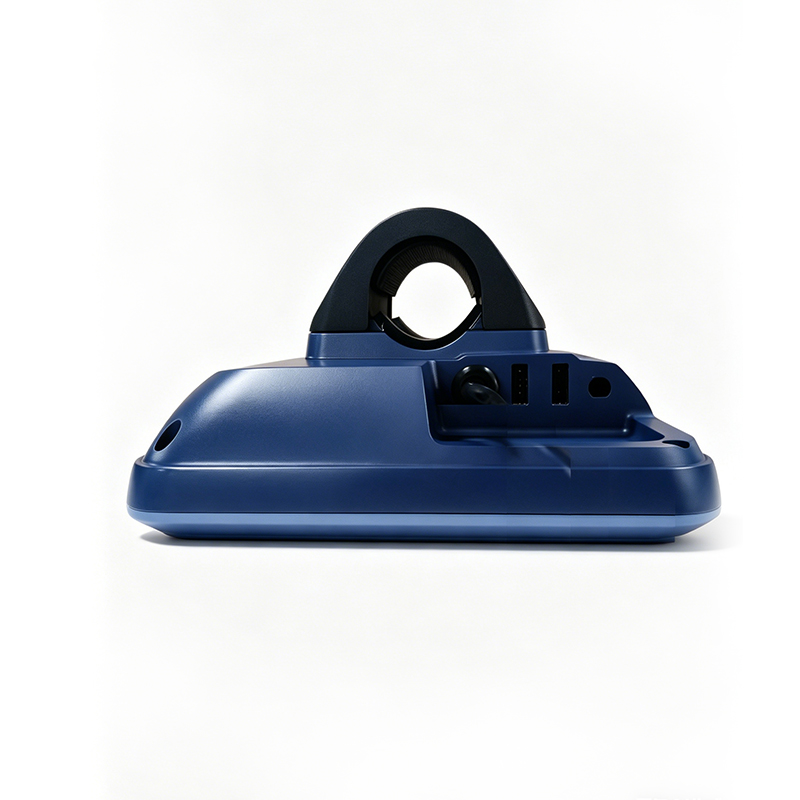

External Interface | 1* USB TYPE-C OTG for Debug 2*USB-A 1* TF Slot Support 512GB 1* Serial Port(RS485/RS232/Wiegand Protocol,3 choose 1,default is RS232) 1*Relay 1*RJ45 1* GPS Antenna Slot,RP-SMA(Only has when choose external GPS antenna) 1* DC IN VCC(12-36V 2.5A) 3* SIM Card Slot 3* PSAM Card |
Battery (Optional) | 7.4V 900mAh polymer battery pack, providing ≥30 minutes of full-speed working. |
| Audio Amplifier | Efficient DSP Processing, SD Sound 3W Mono Output |

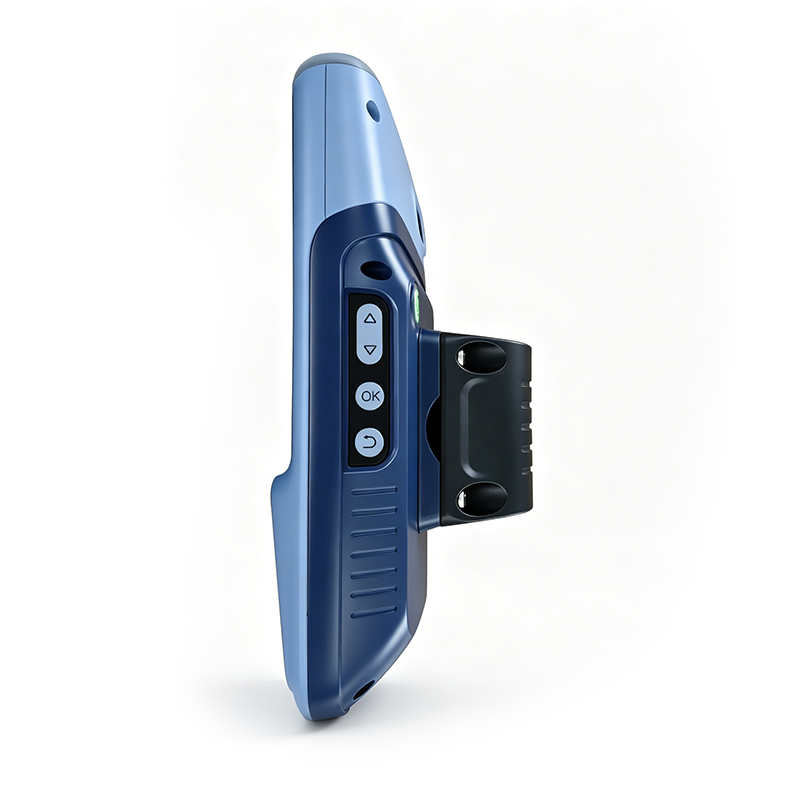

Physical Button | Confirmation key | Up/Down Flip key | Return key |
Environmental | Operating Temperature: -20°C ~ 70°C (-4°F ~ 158°F),Without Battery Installed Storage Temperature: -30°C ~ 80°C (-22°F ~ 176°F) |
| Packaging | Gross Weight:1.5KG Package Size:32*23*15CM(1 PC) ; 70*35*46CM(10 PCS) |
