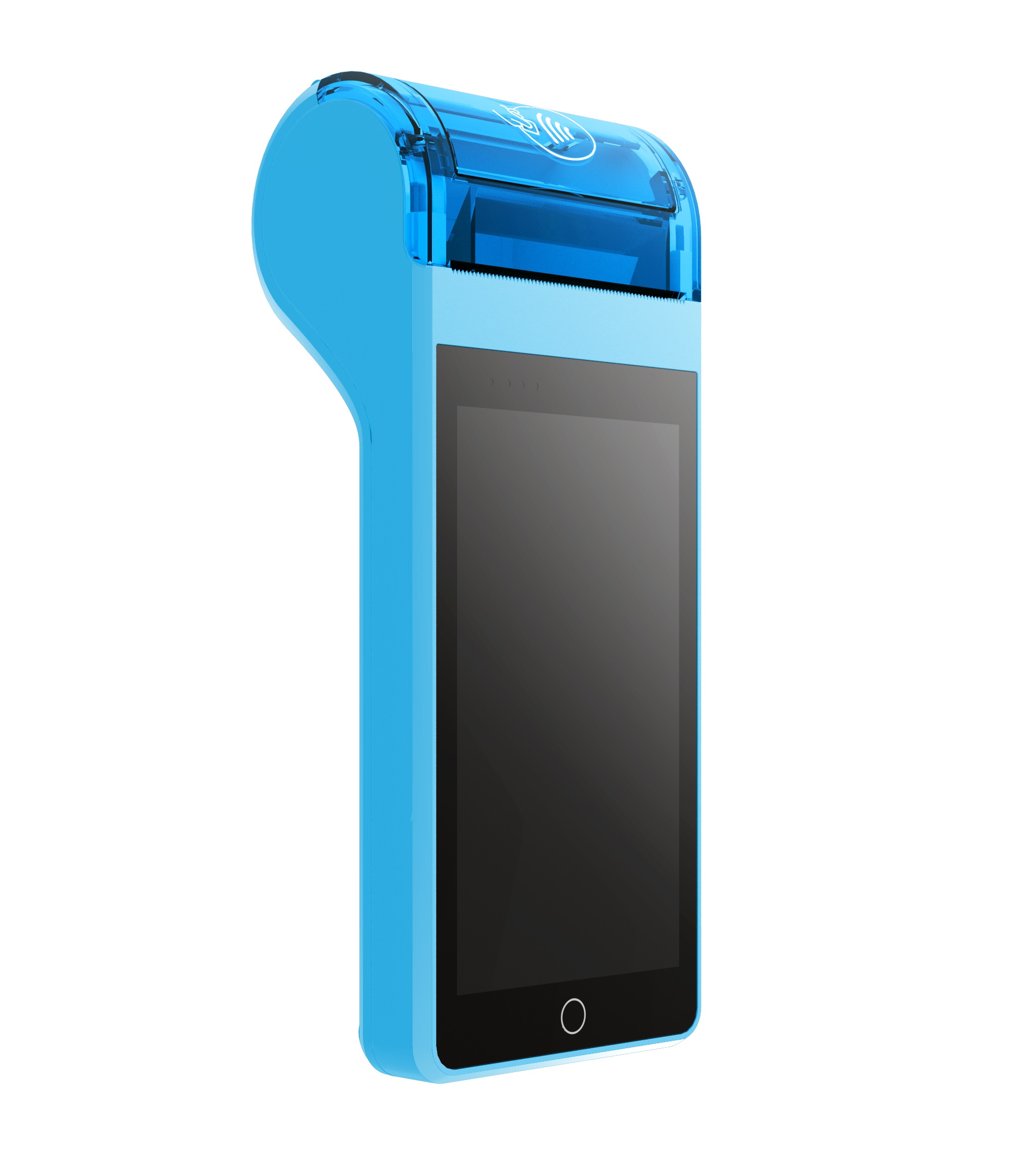

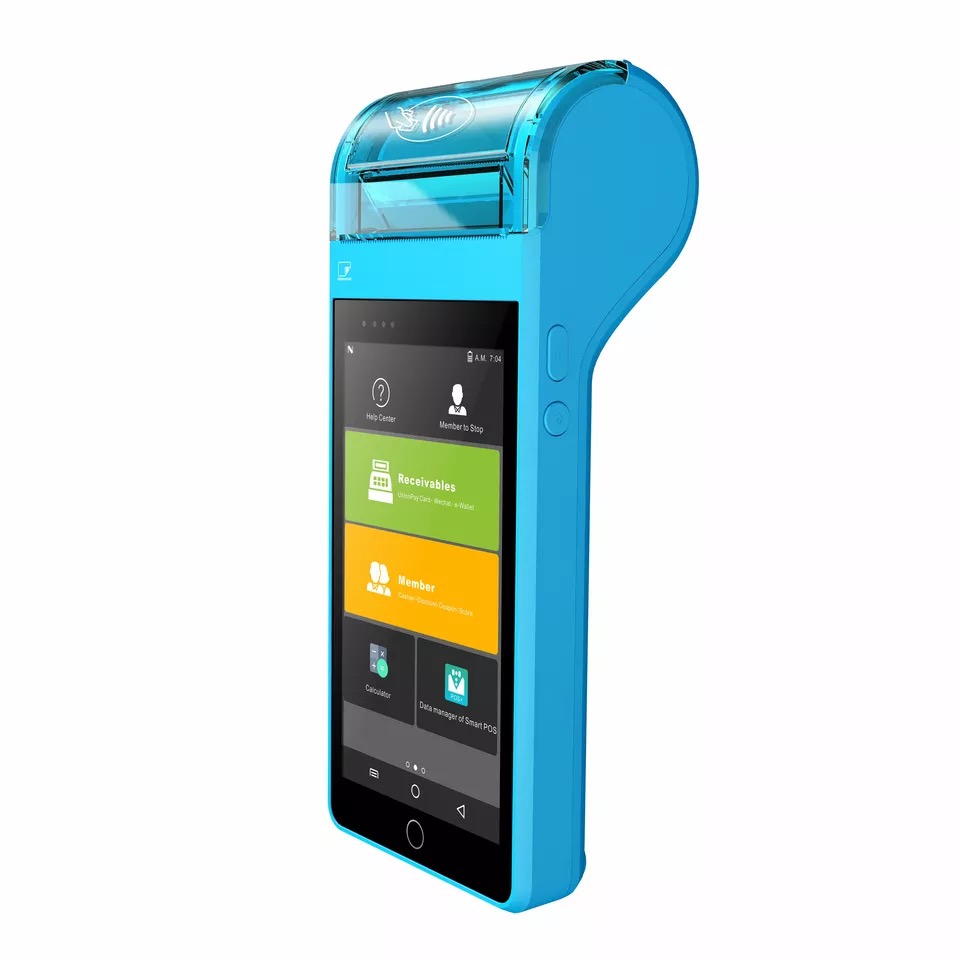

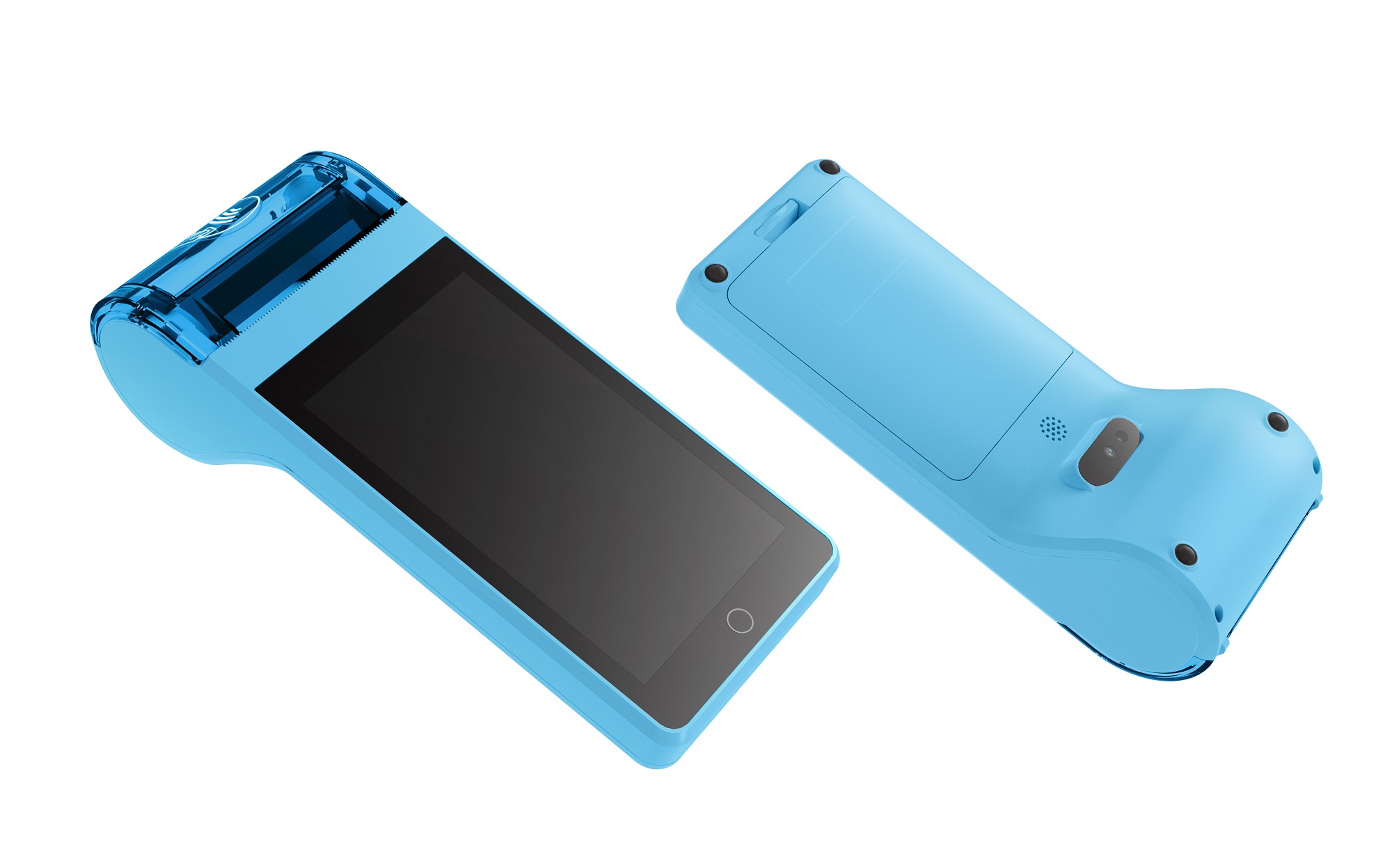

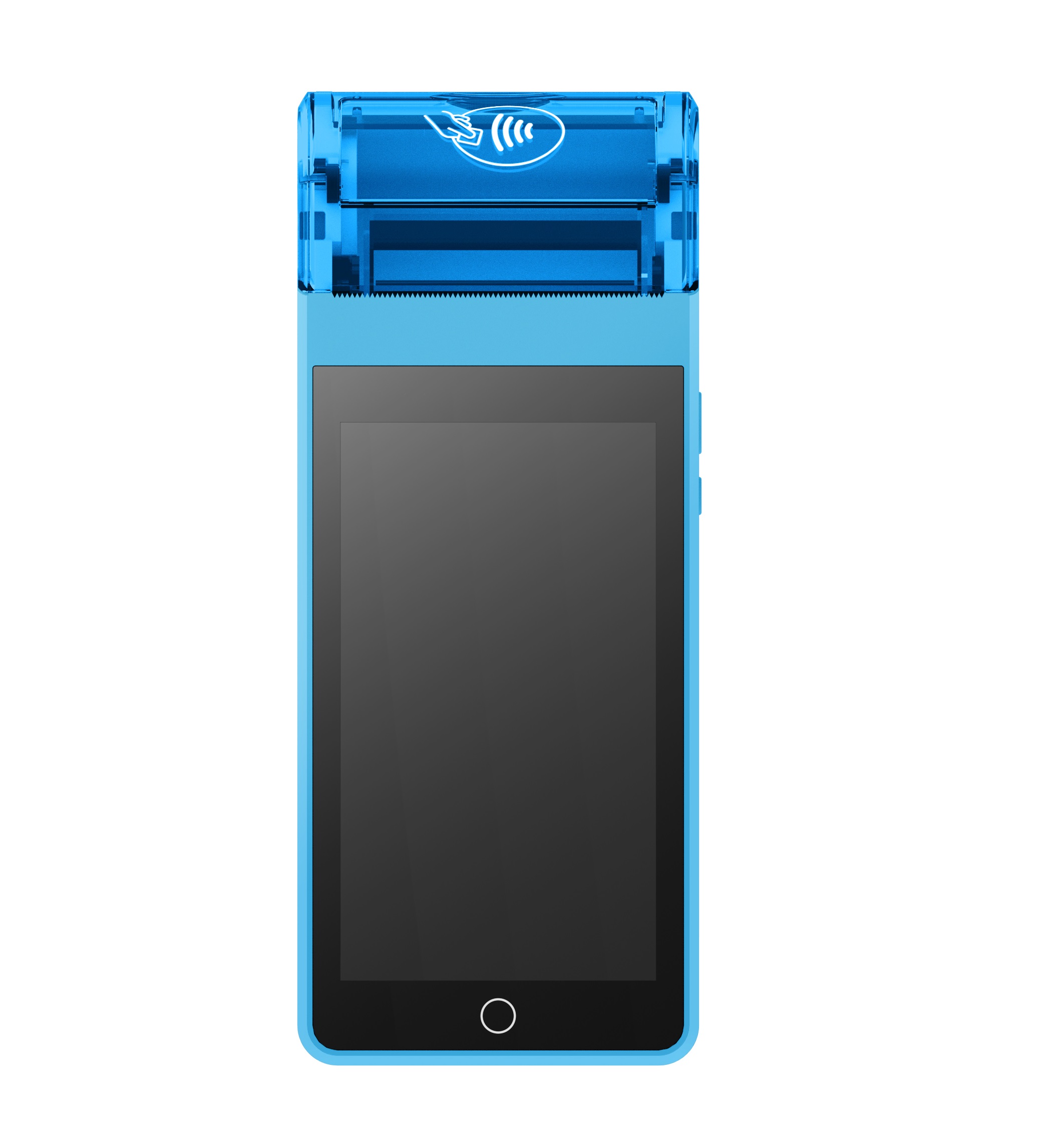

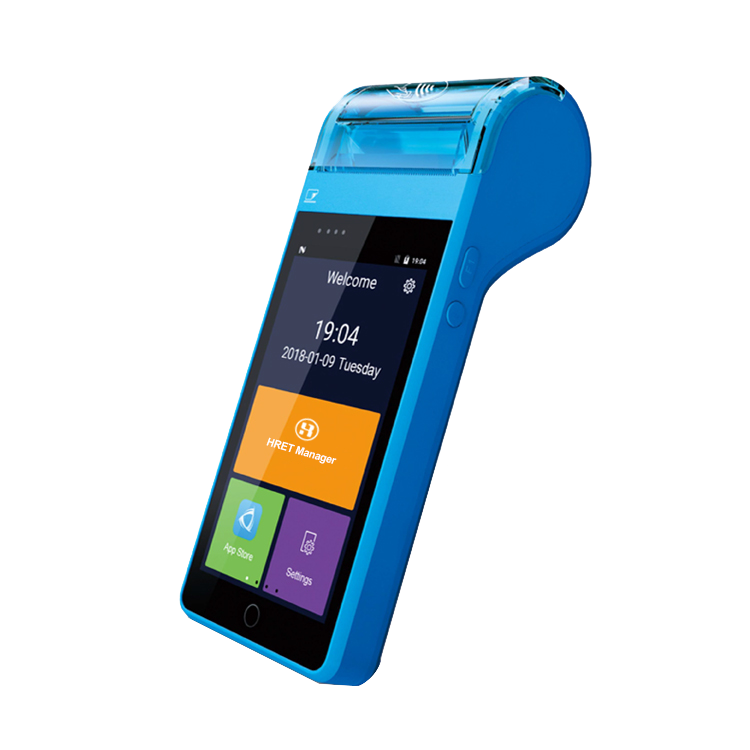

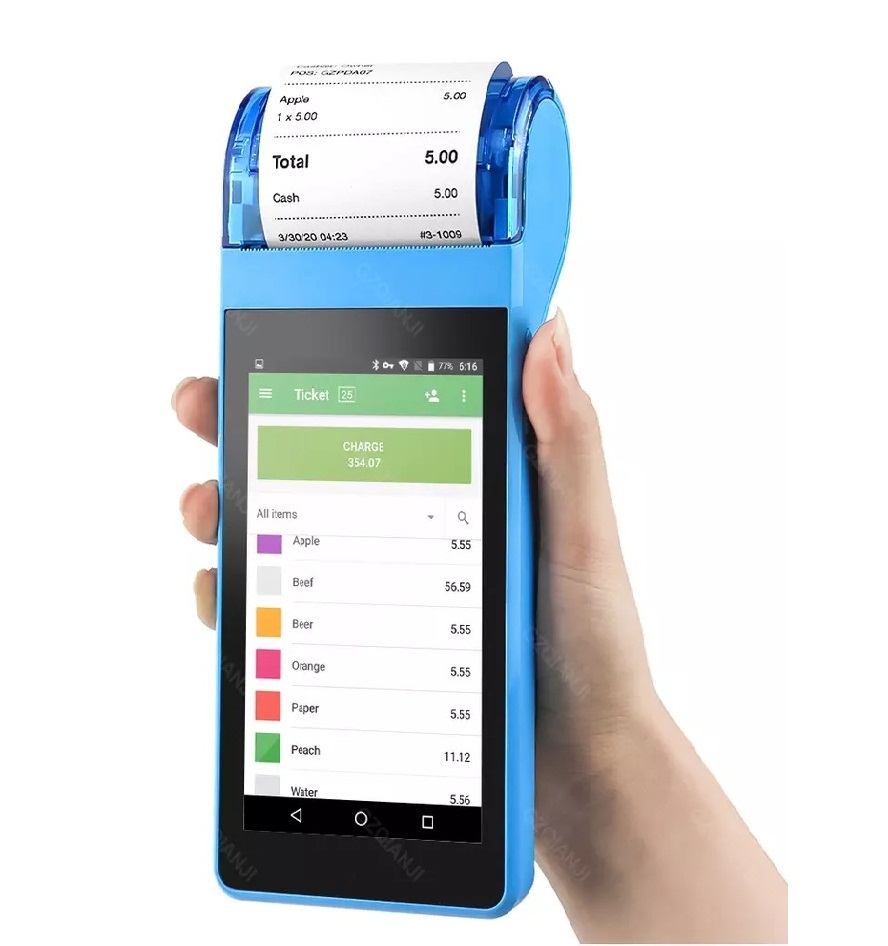

T1N is Android 7 system 5 inch full HD touch screen Pos Terminal,with 4G WIFI Bluetooth 58mm in-built thermal printer,QR Barcode Scanner,GPS and NFC contactless card reader.It can be widely used for parking system,mobile payment,food delivery,restaurant online order etc.
Key Features
1.Customized system, stable and easy to operate
Android 7.0 operation system, provide secondary development kit, easy to operate and develop.
2.High speed Quad-core CPU, no crash, work smoothly
Quad core CPU, with large storage capacity, quick response speed, ensure efficiency working for long time.
3.NFC card reader optional
Support mifare 13.56 NFC contactless card reader and write
4.Multi bands 4G communication
Support different 4G bands from different countries, compatible with 3G and 2G.
5.OEM&ODM available
Products can be customized depends on clients’ requirement and quantity.
Specifications
| T1N 5 inch Android Pos Terminal | |
| CPU | MTK8735V/C 64 bits Quad-core A53 1.3 GHz |
| Operation System | Android 7.0 |
| RAM+ROM | 1GB RAM+8GB RAM |
| LCD | 5 inch,1280*720 resolution |
| Touch Screen | Capacitive multi-touch screen |
| Rear Camera | 5MP camera with LED flash and fixed-focus |
| Barcode Scanner | 1D/2D Bar code reader,Can read screen bar code and color bar code |
| NFC Card Reader | 13.56MHZ ISO/IEC 14443 TYPE A/B. Mifare card read and write |
| GPS | Support GPS and A-GPS high-precision positioning |
| SIM Slot | 1*SIM (Dual SIM optional) |
| PSAM | 2*PSAM |
| Thermal printer | High-speed thermal printer,58mm printing paper width,40mm paper roll diameter |
| Band/Mode | 2G:GSM/EDGE/GPRS (850,900,1800,1900MHz) 3G:UMTS/HSDPA/HSPA/HSPA+ (850,900,1900,2100 MHz)/CDMA EV-DO Rev.A (800MHz)(OPT) 4G : TDD-LTE (B34,B38,B39,B40,B41),FDD-LTE (B1,B3,B8) |
| WIFI | Comply with IEEE802.11b/g /n |
| Bluetooth | BT 4.0 |
| USB Port | 1 mini USB slot |
| Packing | |
| Packing | -10℃-50℃ |
| Adapater | Input 100-240V power output DC5V 3A |
| Battery | 4.4V 4000mAh Polymer battery |
| Weight | 425G |
| Dimension | 193*80*54.5mm |
Applications
